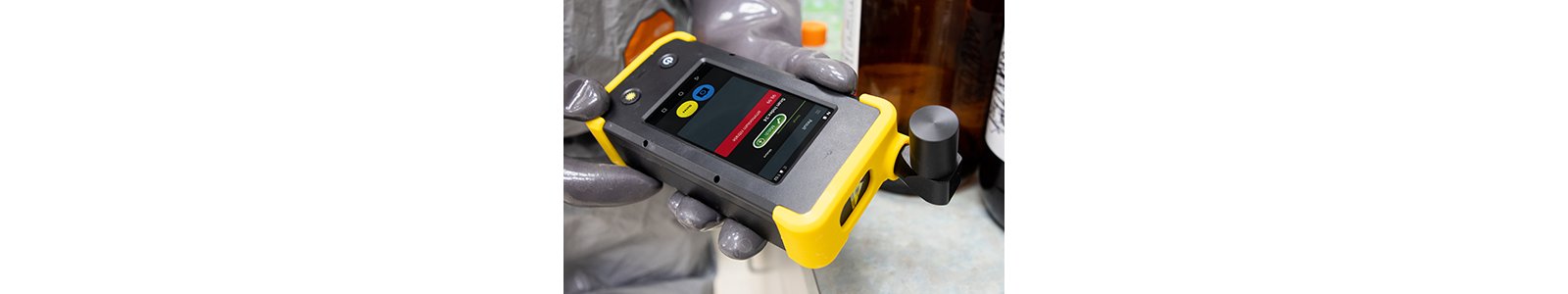

TacticID 手持式拉曼分析儀

用於現場鑑定化學品、爆炸物、麻醉品和許多其他非法、危險和其他現場待測物質的手持式拉曼光譜分析儀

特色

TacticID 是一款現場即可立即使用手持式光譜分析儀，它利用經過實驗室驗證的拉曼光譜，使用戶能夠實時識別未知化學品、爆炸物、麻醉品和許多其他物質。它減少了操作不確定性和回應時間，而不會影響樣本或證據鏈的完整性。TacticID 產品線為執法和第一線人員提供可靠的現場識別。

直接或在包裝中進行無損識別，避免與樣品直接接觸
可操作的結果與關鍵安全訊息一起顯示
廣泛且可客製化的資料庫
選擇 785 或 1064 nm 雷射光激發，以最佳識別原材料，包括活性藥物成分、賦形劑、潤滑劑、溶劑和著色劑
用於識別混合樣本中的組成和威脅級別的混合分析

產品資訊 : Metrohm TacticID-1064 ST: Transforming On-Site Chemical Identification with Precision and Speed (8.000.5498, PDF, 2.1 MB)

產品規格表 : Metrohm TacticID-1064 ST (8.000.5501, PDF, 677 KB)

產品規格表 : TacticID Mobile (280001298-A, PDF, 982 KB)

產品資訊 : Handheld Raman Product Line for Material ID (8.000.5486, PDF, 560 KB)

優勢

Easy field operation

0:00

0:00 / 0:36

TacticID analytical tools are designed for professionals who require reliable, rapid, and continuous performance. The ergonomic design and compact size make it ideal for use in the field. A large, responsive touchscreen makes operation easy, even when working in protective gear. Color-coded results display illicit materials, suspected precursors and cutting agents, and chemical safety information so appropriate action can be taken.

Flyer: Efficient Material Identification with TacticID-1064 ST (8.000.5502, PDF, 990 KB)

Comprehensive detection capabilities

0:00

0:00 / 0:50

Metrohm delivers unmatched capability to scan more samples anywhere in the world. TacticID sampling accessories cover more samples in more scenarios, including confined or hard-to-reach spaces. The ability to see through containers allows non-invasive identification of substances without compromising safety. TacticID offers the freedom to work without constraints, delivering results when and where needed most.

Flyer: Comprehensive Detection Capabilities with Metrohm's TacticID-1064 ST (8.000.5503, PDF, 8.1 MB)

Rapid and accurate chemical identification

TacticID systems deliver precise results for a wide variety of samples. A comprehensive Raman library, the largest of any handheld Raman manufacturer, identifies various substances – from illicit materials to chemical warfare agents. Our extensive collection of narcotics, novel psychedelic substances, and explosives is beneficial for hazmat teams and customs agents who encounter diverse and potentially dangerous materials. The combination of speed and accuracy makes TacticID an invaluable tool for rapid and accurate chemical identification.

Flyer: Accuracy When It Counts with TacticID-1064 ST (8.000.5504, PDF, 1.3 MB)

系統

TacticID-1064 ST 基础套装

29530010

TacticID®-1064 ST 是一款 1064 nm 手持式拉曼分析仪，用于快速现场识别炸药、毒品和其他可疑材料。TacticID-1064 ST 的透视功能可以穿过不透明和透明的包装对样品进行非破坏性分析，同时可显着显示样品威胁级别，以便急救人员、安全人员、执法部门、炸弹小组、海关和边境保护局以及危险物品处理小组迅速采取行动，并保持样品接触最小。TacticID-1064 ST 利用成熟的拉曼光谱技术，结合获得专利的 STRaman® 技术，使用户能够实时地对未知化学品、毒品、药物、炸药和许多其他物质进行实时可行的识别（甚至可穿过不透明的障碍），从而大大降低了操作不确定性和响应时间。TacticID-1064 ST 配有 1064 nm 激光激发功能和用于透视应用的 ST 适配器，可扫描较大的样品区域，产生无荧光光谱，从而使用户能够直接穿过包装识别坚硬的街头样品、不均匀的混合物和材料。此防护等级为 IP68 的系统配有带触摸屏和/或硬件按键界面的高亮度显示屏，使用方便，甚至可穿过防护装备。瑞士万通 TacticID-1064ST 基本版套装包括透视附件、通用附件、聚苯乙烯附件、坚固的手提箱、电缆、电源和激光护目镜。

TacticID-1064 ST Advanced

29530020

TacticID®-1064 ST 是一款 1064 nm 手持式拉曼分析仪，用于快速现场识别炸药、毒品和其他可疑材料。TacticID-1064 ST 的透视功能可以穿过不透明和透明的包装对样品进行非破坏性分析，同时可显着显示样品威胁级别，以便急救人员、安全人员、执法部门、炸弹小组、海关和边境保护局以及危险物品处理小组迅速采取行动，并保持样品接触最小。TacticID-1064 ST 利用成熟的拉曼光谱技术，结合获得专利的 STRaman® 技术，使用户能够实时地对未知化学品、毒品、药物、炸药和许多其他物质进行实时可行的识别（甚至可穿过不透明的障碍），从而大大降低了操作不确定性和响应时间。TacticID-1064 ST 配有 1064 nm 激光激发功能和用于透视应用的 ST 附件，可扫描较大的样品区域，产生无荧光光谱，从而使用户能够直接穿过包装识别坚硬的街头样品、不均匀的混合物和材料。此防护等级为 IP68 的系统配有带触摸屏和/或硬件按键界面的高亮度显示屏，使用方便，甚至可穿过防护装备。瑞士万通 TacticID-1064ST Advanced 套装包括透视附件、通用附件、SWD 附件、样品瓶支架、LWD 附件、直角附件、聚苯乙烯附件、透视反射探针、坚固的手提箱、电缆、电源和激光护目镜。

TacticID-1064 ST Flex

29530030

瑞士万通 TacticID-1064 ST Flex 套件可让用户对瑞士万通 TacticID-1064 ST 进行自定义，以满足其需求。Flex 套件包括运行瑞士万通 TacticID-1064 ST 所需的基本组件，不含采样附件。运行时至少需要一个采样附件。TacticID-1064 ST Flex 套件包括聚苯乙烯附件、一个 USB-C 至 USB-C 电缆（1.8 m）、电源（15V 3A）和 TacticID-1064 ST v2 电池。

TacticID Mobile

BWT-840001195

TacticID® Mobile 是一款经济、符合人体工程学的 1064 nm 手持式拉曼光谱仪，具有目标库，可快速、无损地识别毒品、危险化学品和可疑材料。专为方便安全人员现场操作而设计，可直接通过透明容器快速扫描样品，识别结果清晰显示在大型、高亮度、高分辨率的触摸屏上。TacticID Mobile 使用拉曼光谱来测量样品的分子指纹，并利用多种毒品、前体、有毒和常见化学品、药品、炸药及更多组成的嵌入式光谱库进行鉴定。通过需求点就地识别，急救人员可在不到一分钟的时间内获得可操作的样品识别结果以及安全信息（GHS 和 NFPA704），从而可以更准确地快速响应。借助 TacticID Mobile 1064 nm 激发激光，用户可以识别棘手的街道样品、有色样品和不纯样品，荧光干扰小。该系统可以使用触摸屏和硬件按键界面进行操作，甚至佩戴防护装备时也可使用。它采用紧凑的设计，具有坚固的 IP68 橡胶保护层，符合 MIL-STD-810H 跌落测试要求。每次扫描都可以添加其他信息，包括图片、位置标记、注释和其他识别信息，从而在一份文档中提供包含所有相关信息的全面报告。用户创建的库和自定义功能也可用。

TacticID Mobile Flex

BWT-840001336

TacticID Mobile Flex 套件可让用户对 TacticID Mobile 进行自定义，以满足其需求。Flex 套件包括运行 TacticID Mobile 所需的基本组件，不含采样附件。运行时至少需要一个采样附件。TacticID Mobile Flex 套件包括聚苯乙烯校验帽、C 型至 A 型的 USB 电缆、10.8 V 可充电锂离子电池和带有国际插头的 TacticID 移动电源适配器。

1 / 5

瀏覽更多系統 (5)

查看其他手持式拉曼光譜儀

產品資訊 : Choosing the Most Suitable Laser Wavelength For Your Raman Application (410000001-C, PDF, 392 KB)

Specifications for TacticID
	TacticID-N Plus	TacticID-1064 ST	TacticID Mobile
Part number	BWT-840000994	29530020	BWT-840001194
Excitation wavelength (nm)	785	1064	1064
Fluorescence resistant	limited	excellent	excellent
SERS capability	Yes	No	No
Laser output power	Class 3b; 300 mW adjustable by 1% increments	Max. 495 mW, Class 3b laser below 500 mW ANSI Z136.1 standard	Class 3b; 250 mW adjustable by 1% increments
Spectral range (cm^-1)	176-2900	176-2500	176-2500
Detector type	Linear CCD array	TE-cooled InGaAs array	TE-cooled InGaAs array
Display	High-brightness and high-resolution touch screen	5'' high-brightness and high-resolution touch screen	5'' high-brightness and high-resolution touch screen
Camera	5 MP on-board camera	13 MP on-board camera	13 MP on-board camera
Software	TOS Plus (embedded), TID Plus (PC)	TOS-1064 (embedded), TID EX (PC)	TOS-XM (embedded), TID 21 (PC)
Languages	English, Chinese (Traditional and Simplified), Spanish, French, Japanese, Korean, German, Turkish, Polish	English, Spanish, Chinese (Traditional and Simplified), Japanese, French, ...	English
Libraries (included)	Metrohm Illicit and General Chemical Library	Metrohm Illicit and General Chemical Library	Metrohm Illicit and General Chemical Library
Libraries (optional)	Chemical Warfare Agent Library, Explosives Library	Metrohm Comprehensive Raman Library, Chemical Warfare Agents, Explosives	Metrohm Comprehensive Raman Library, Chemical Warfare Agents, Explosives
Operation modes	HQI match/no match; mixture analysis; T-mode for SERS	HQI match/no match; mixture analysis; See-through analysis	HQI match/no match; mixture analysis
Data formats	.txt, .csv, .spc data and pdf reports available	.txt, .csv, .spc data and pdf reports available	.csv, .spc data and pdf reports available
Data transfer	USB, Bluetooth, Wi-Fi, Direct Export to USB drive	Bluetooth, Wi-Fi & USB-C, Direct Export to USB drive	Wi-Fi, USB-C, Direct Export to USB drive
Battery	Rechargeable Li-ion, >10 hrs continuous operation or CR123 battery option, supports car charger	Swappable, rechargeable Li-ion, >4 hrs operation, supports car charger and external power bank, >150 hour standby time	Rechargeable Li-ion, > 7 hrs normal operation, supports car charger and external power bank, > 150 hour standby time
Weight	~2.2 lbs (~1.0 kg)	~ 3.3 lbs (1.5 kg)	3.3 lbs (1.5 kg)
Size	7.5 x 3.9 x 2.0 in (190 x 100 x 50 mm)	8.4 x 4.3 x 2.2 in (212 x 107 x 55 mm)	8.4 x 4.3 x 2.2 in (212 x 107 x 55 mm)
Operating temperature	-20 °C to +50 °C	-20 °C to +50 °C	-20 °C to +50 °C
Protection	IP65	IP68, MIL STD 810H drop compliant	IP68, MIL STD 810H drop compliant
Standard sampling accessories	Point & shoot, liquid vial holder, TacPac SERS adaptor, polystyrene validation cap	Smart Tip: Liquid vial holder, right angle adaptor, polystyrene validation cap, ST/Gen/SWD/LWD point & shoot adaptors	Point & shoot, liquid vial holder, right angle adaptor, polystyrene validation cap, bottle adaptor
Optional sampling accessories	Right angle adaptor, shoulder bag	large bottle adaptor, immersion probe, shoulder bag	large spot adaptor, large bottle adaptor, immersion probe, shoulder bag, power bank
Typical analysis time @ 90% laser power	< 30 seconds	< 30 seconds	< 45 seconds
Compliance	CE, Laser Safety	CE, Laser Safety	CE, Laser Safety
