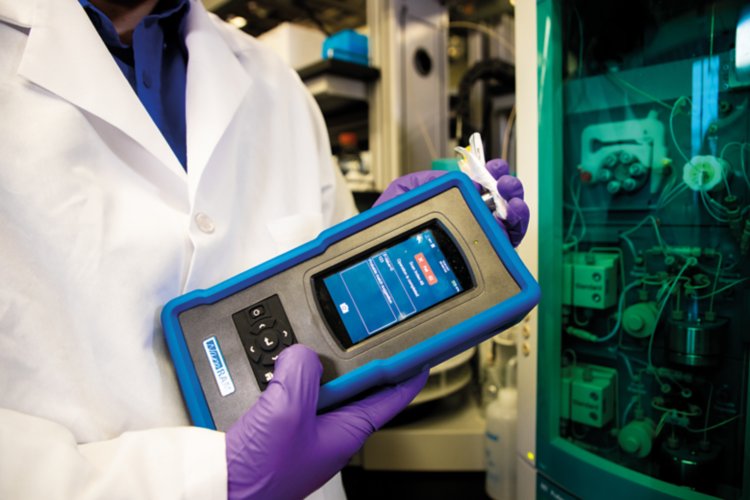

NanoRam
State-of-the-art handheld 1064 nm Raman instrument for non-destructive identification and verification of incoming raw materials such as APIs, excipients, and intermediates.
The NanoRam-1064 is designed for rapid incoming material inspection at the point of need. Utilizing Raman technology, data can quickly and easily be collected through transparent containers, maintaining the integrity of the sample. The high-performance NanoRam-1064 minimizes fluorescence and can effectively differentiate many excipients including cellulose, polysorbate and Opadry®, in addition to colored materials.
- Non-destructive material identification and verification
- Intuitive software with easy touchscreen operation
- Fully compliant with all governing regulations
- Even samples that have high fluorescence signal can be identified with the NanoRam-1064
- Robust algorithms for user-definable methods and libraries for reliable material verification
Straightforward raw material ID
NanoRam can be used by non-technical users to rapidly identify samples in the lab, warehouse, loading dock or field. This allows for a more efficient verification of materials for use in manufacturing without requiring time-consuming trainings.
All advantages of Raman spectroscopy in a handheld system
Raman spectroscopy has high chemical specificity, giving the molecular fingerprint that can uniquely identify your sample without any need for sample preparation. Raman spectra can be measured directly from your sample, or through transparent glass or plastic packaging, maintaining sample integrity and minimizing operator exposure and sample contamination.
NanoRam comes with sampling accessories optimized for different sample types, from solids and liquids, to gels and tablets.
Compliant spectrometer
NanoRam, with 21 CFR Part 11-compliant software, plays an integral role in cGMP-compliant facilities. NanoRam includes performance validation tests to ensure system performance to the standards of Raman spectroscopy pharmacopeial methods including the USP <858>, EP 2.2.48 and JP 2.26, and the People’s Republic of China Pharmacopeia Guidelines on Raman Spectroscopy.
| NanoRam | |
|---|---|
| Excitation wavelength | 1064 nm |
| Laser output power | 420 ± 30 mW at 100%, adjustable in 10% increments |
| Spectral range | 176 cm-1 to 2500 cm-1 |
| Display | High brightness & high resolution touch screen |
| Barcode reader | 1D and 2D standards |
| Camera | Can be enabled/disabled at Factory |
| Software |
NOS-1064 (embedded), NID EX (PC) |
| Data formats | .txt, .csv, .spc |
| Data transfer | Wi-Fi & USB |
| Battery | rechargeable Li-ion, > 4 hrs continuous operation |
| AC Adapter | Output: DC 12 V, 2 A Minimum |
| Weight | ~3.4 lbs (~1.545 kg) |
| Size | 9.8 x 4.3 x 2.4 in (250 x 110 x 60 mm) |
| Operating temperature | -10 °C to +50 °C |
| Protection | IP65 |
| Sampling accessories | Point & Shoot, Vial Holder, Polystyrene Validation Cap, Immersion Probe, Bottle Adapter, Right Angle Adapter, Large Bottle Adapter*, Large Spot Adapter* *optional adapters |
Talk to your Metrohm representative and learn about the best solution for your needs!
- Sampling
- Software

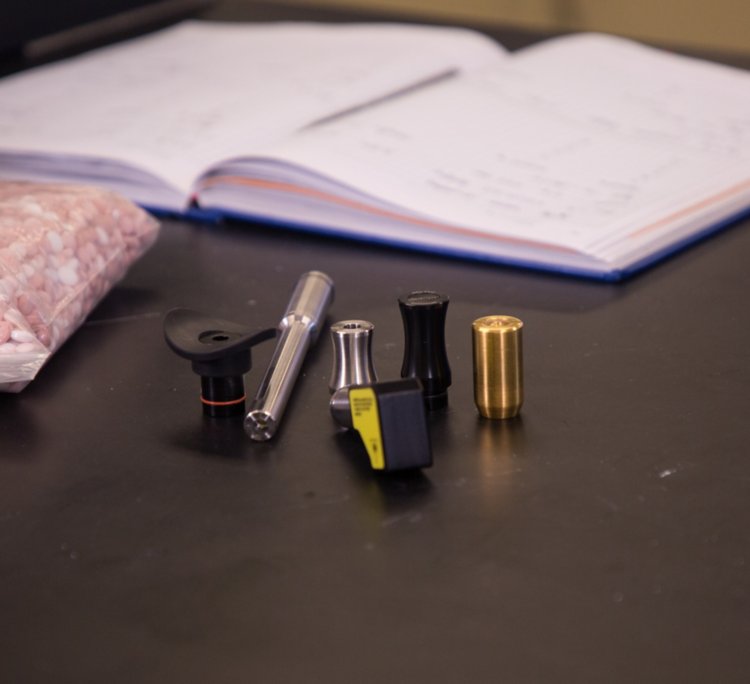

Fast and safe analysis with sampling accessories
Using Raman spectroscopy, no sample preparation is required, and the instrument does not need any warm-up time. You can start your analysis immediately.
NanoRam comes with optimized sampling accessories to measure a variety of samples in different environments and packaging.
Intuitive software with robust methods
NanoRam is operated with an intuitive software featuring a user-friendly touch screen interface for both technical & non-technical users with clearly displayed results.
Robust multivariate algorithms deliver reliable methods for verifying and identifying incoming materials, and for identifying counterfeit and substandard products.
