Conductivity measuring cell c = 0.8 cm-1 with Pt1000 (fixed cable)
6.0912.110
- 기능 개요
- 기술 스펙
Conductivity measuring cell with cell constant c = 0.8 cm-1, with integrated Pt1000 temperature sensor and with fixed cable (4 x B (4 mm)).
Thanks to the robust/break-proof plastic shaft made of polypropylene and an impact protection, this sensor is mechanically very resistant.
This sensor is suitable for measurements of medium conductivities (1 uS/cm to 100 mS/cm), e.g., in:
- drinking water
- surface water
- wastewater
The sensor can be connected to an 856 Conductivity Module with the adapter box (6.2103.160).
장비 당신의 Conductivity measuring cell c = 0.8 cm-1 with Pt1000 (fixed cable)![download]()
다운로드 소모품 PDF
다운로드 소모품 PDF- 옵션 부품

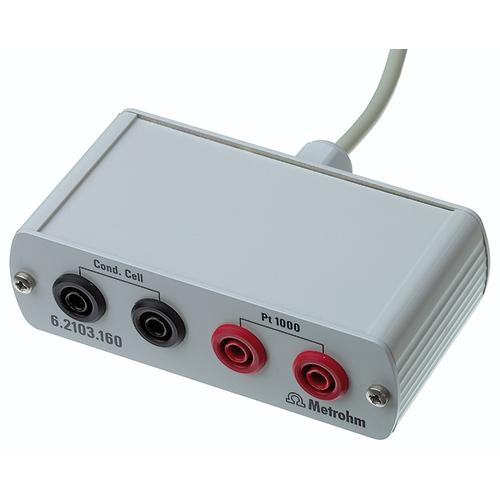

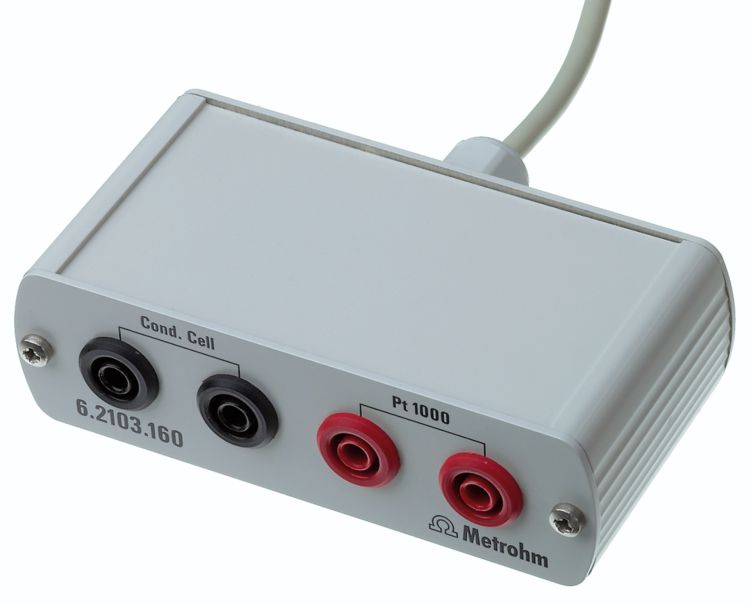

Adapter 4 x socket B – plug N
6.2103.160
Adapter box for the connection of classical Metrohm Conductivity measuring cells with 4 banana plugs to the 856 Conductivity Module.
KCl ion standard 250 mL
6.2301.060
KCl ion standard (c(ion) = 0.1000 +/-0.0005 mol/L), can also be used as standard solution for conductometry 12.87 mS/cm (25 °C).
Conductivity standard 100 µS/cm 250 mL
6.2324.010
Conductivity standard for calibration of conductivity measuring cells with cell constant = 0.1/cm.
Conductivity standard 100 µS/cm, 5 x 30 mL
6.2324.110
Conductivity standard for calibration of conductivity measuring cells with cell constant = 0.1/cm.
