"Peristaltic" (2-channel) pump module accessory set
6.05001.010
- Feature overview
The accessory set contains all of the components required for the tube connections between a rinsing pump and an aspiration pump at the "Peristaltic" pump module. In addition to preassembled tubing with Luer connectors, each of these also includes two press clamps and pump tubing.
Equip your "Peristaltic" (2-channel) pump module accessory set
Scope of delivery and opt. parts (PDF)



- Included parts
- Optional parts
Pharm-A-line pump tubing to the peristaltic pump module
6.01801.020
The pump tubing comes pre-equipped with adapters that permit direct installation in the peristaltic pump of the pump module. The Pharm-A-line pump tubing is used for the transport of both aqueous and nonaqueous solutions and must be operated in connection with the white press clamp in the pump module.

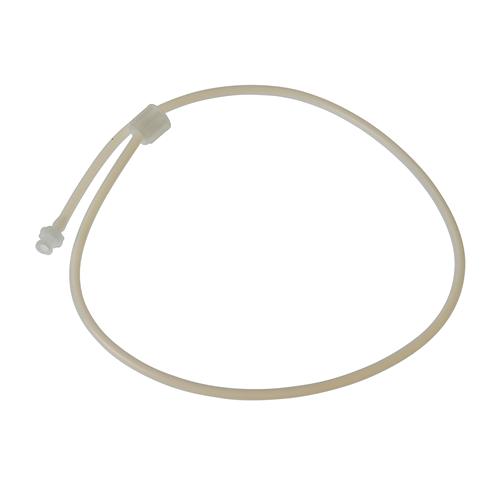

PTFE tubing with Luer 60 cm
6.01805.100
Tubing for the connection between peristaltic pump 1 or 3 in the pump module with the distributor (rinsing) on the Pick&Place module.

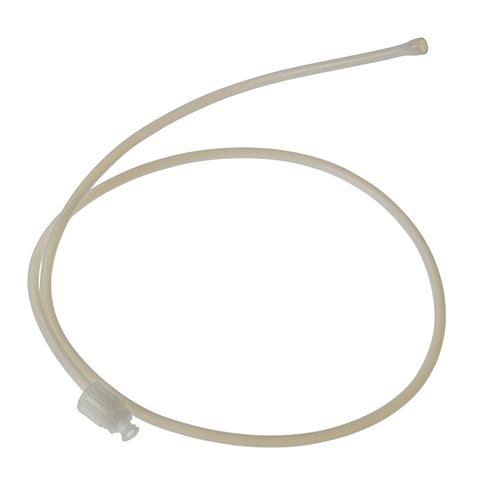

PTFE tubing with Luer 80 cm
6.01805.110
Tubing for the connection between peristaltic pump 2 or 4 in the pump module with the distributor (aspiration) on the Pick&Place module.
PTFE tubing with Luer 2.5 m
6.01805.120
Tubing for the connection between the canister and the peristaltic pump in the pump module.
