AN-COR-016
2025-05
ASTM G61: Standard test method for conducting cyclic potentiodynamic polarization
ASTM-compliant methods from Metrohm Autolab
Summary
ASTM G61 is a standardized method to test susceptibility of various alloys of iron, nickel, and cobalt to localized corrosion within a chloride environment [1]. The potential at which the anodic current increases rapidly is an indication of pitting. The higher the potential, for the same scan rates, indicates better protection against pitting corrosion.
By using a Metrohm Autolab instrument and our ASTM-compliant corrosion cells, it is possible to fully meet the requirements of this ASTM standard. The following Application Note describes an example measurement that was made using VIONIC powered by INTELLO according to the guidelines of ASTM G61.
Sample preparation
It is essential that the surface of the sample is free from contamination. Therefore just prior to immersion in the corrosive medium, the sample (a 1 cm2 disk of Type 430 stainless steel) was cleaned by a combination of mechanical polishing with sandpaper and alternatively rinsing with ultrapure water and isopropyl alcohol.
Experimental
The test consists of polarizing the system toward potentials that are more positive than the open-circuit potential (OCP) until the current reaches a predetermined value (usually 5 mA). Then the scan is reversed, forming a hysteresis loop on the voltammogram. The higher the potential at which the hysteresis loop is closed, the less prone the alloy is to pitting corrosion.
For this experiment, the sample (430 SS) was used as a working electrode (WE). Two Metrohm platinum sheet electrodes were used as the counter electrode. As a reference electrode, an Ag/AgCl 3 mol/L KCl electrode was chosen. The cell used in this study was the ASTM-compliant Metrohm Autolab 1 L corrosion cell. The electrolyte was a 3.5% NaCl solution (artificial seawater).
Nitrogen gas was bubbled into the solution for one hour during the preparation step to remove any oxygen dissolved in the electrolyte. After one hour, the sample was immersed in the electrolyte, and the degassing continued for another hour.
Then 10 minutes before the start of the polarization (i.e., 50 minutes after insertion), the OCP of the counter electrode was recorded using the S2 connection of VIONIC. The OCP of the sample (WE) was measured, and the scan started from 0 V vs OCP. The scan rate used was 167 µV/s with a step potential of 150 µV.
The anodic scan continues until a current cut-off of 5 mA is reached, at which point the scan direction is reversed. The measurement stops when either the corrosion potential (Ecorr) is reached, or the hysteresis is closed (noted by manual observation).
Results and Discussion
The OCP (platinum potential) of the counter electrode was recorded as EC-OCP = 0.24 V. The corrosion potential of the working electrode was recorded as Ecorr = -0.28 V vs Ag/AgCl.

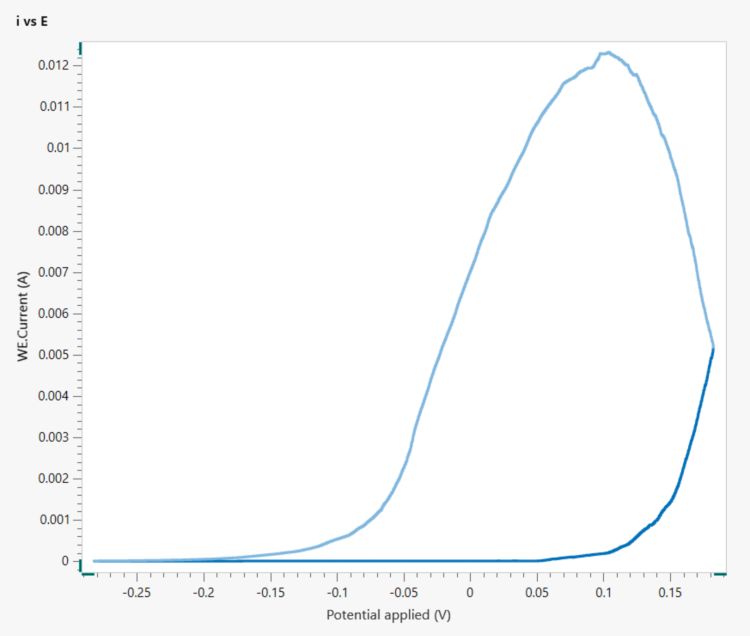

In Figure 1, the resulting voltammogram (I vs E) is shown.

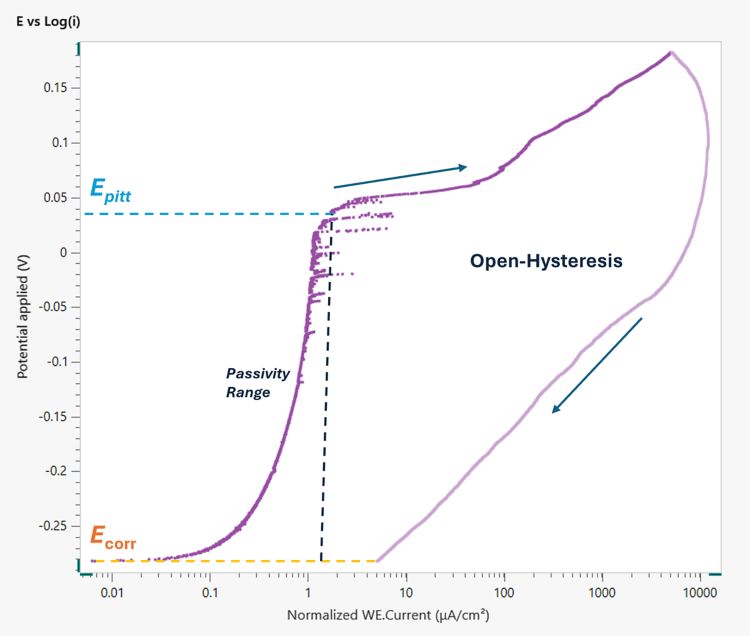

The data is transformed according to ASTM standard G3 [2] in Figure 2, where a plot of the potential (E) vs the log of the current density (j) is shown.
In this case, this sample exhibited an open hysteresis, so the measurement ended once the corrosion potential was reached again. Epitt is the pitting potential and corresponds to the potential at which the pitting (localized) corrosion begins. Between the initial Ecorr and Epitt is a current density passivity range where new pits are unable to form, but existing ones can propagate [3]. The high hysteresis indicates that the sample has undergone pitting corrosion.
Conclusions
The ASTM G61 standard for testing alloys in chloride solutions for localized corrosion has been implemented in an INTELLO procedure. The experiment was performed using VIONIC and the Metrohm Autolab 1 L corrosion cell. The presence of a hysteresis indicates this sample undergoes pitting corrosion under these conditions.
References
- G61 Standard Test Method for Conducting Cyclic Potentiodynamic Polarization Measurements for Localized Corrosion Susceptibility of Iron-, Nickel-, or Cobalt-Based Alloys. https://www.astm.org/standards/g61 (accessed 2024-05-24).
- Standard Practice for Conventions Applicable to Electrochemical Measurements in Corrosion Testing. https://www.astm.org/g0003-14r19.html (accessed 2024-03-08).
- Bellezze, T.; Viceré, A.; Giuliani, G.; et al. Study of Localized Corrosion of AISI 430 and AISI 304 Batches Having Different Roughness. Metals 2018, 8 (4), 244. DOI:10.3390/met8040244
