Ag/AgCl reference electrode (length 16.2 cm)
6.0726.110
- Överblick över funktioner
- Tekniska specifikationer
Silver / silver chloride reference electrode with double junction system, installation length 13.8 cm. This reference electrode is well suited for automated applications. The SGJ 14/15 enables easy assembly and the flexible ground-joint diaphragm, which is insensitive to contamination, can be easily replaced. The reference and bridge electrolyte can be freely selected according to the application and are easy to exchange. This sensor is delivered without electrolyte filling.
Utrustning Din Ag/AgCl reference electrode (length 16.2 cm)
Scope of delivery and opt. parts (PDF)
Scope of delivery and opt. parts (PDF)- valfria delar

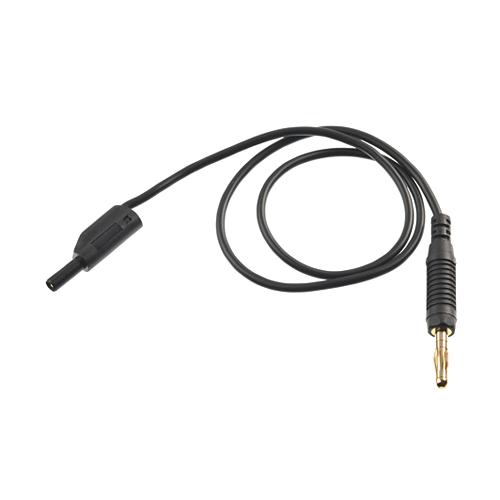

Cable strand, length 0.55 m
6.02105.000
Electrode cables (1x banana plug 4 mm, 1x banana plug 2 mm) to connect a disconnected reference electrode to an analog measuring input in an OMNIS titration system.
Cable strand, length 1.5 m
6.02105.010
Electrode cables (1x banana plug 4 mm, 1x banana plug 2 mm) to connect a disconnected reference electrode to an analog measuring input in an OMNIS titration system, length 1.5 m.
Diaphragm for reference electrode
6.1243.030
Spare ground-joint diaphragm for 6.0726.1XX and 6.0729.1XX reference electrodes
Strand / 1 m / 2 x B
6.2106.020
Electrode cable with 2 x plug B (4 mm) for connecting electrodes with plug-in head B
