Multichannel potentiostats/galvanostats

Multichannel instruments: electrochemistry times twelve.

Benefits Systems Options and upgrades Knowledge hub

Highlights

Take a fully functional poteniostat/galvanostat, multiply it by twelve, and you get a Multichannel instrument.

Full configuration flexibility with eight modules to choose from
Up to twelve potentiostat/galvanostat channels in one cabinet
Analog & digital input/output available to connect with a variety of accessories
Access to powerful NOVA software for all your procedures, analysis, and accessory control

Brochure: Instruments for electrochemical research (8.000.5314, PDF, 2.29 MB)

Benefits

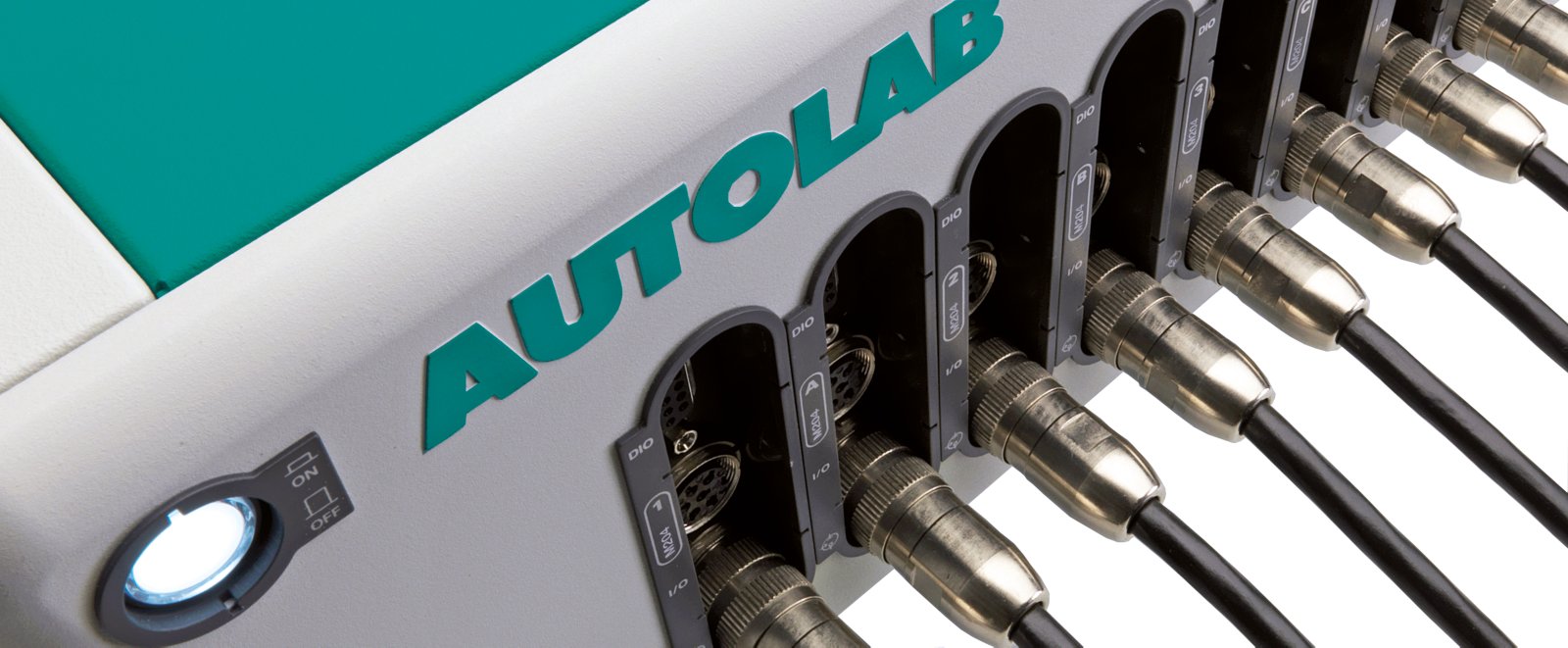

One instrument, twelve measurements

https://metrohm.scene7.com/is/image/metrohm/4032?ts=1705569217419&dpr=off

The Multichannel instruments consist of a mainframe with up to twelve channels. As each channel is a separate potentiostat/galvanostat module, you can have one instrument that allows you to perform up to twelve measurements on just as many individual electrochemical cells.

Connect up to three computers to one multichannel cabinet
Expand functionality with modules of your choice
Connect and control external instruments

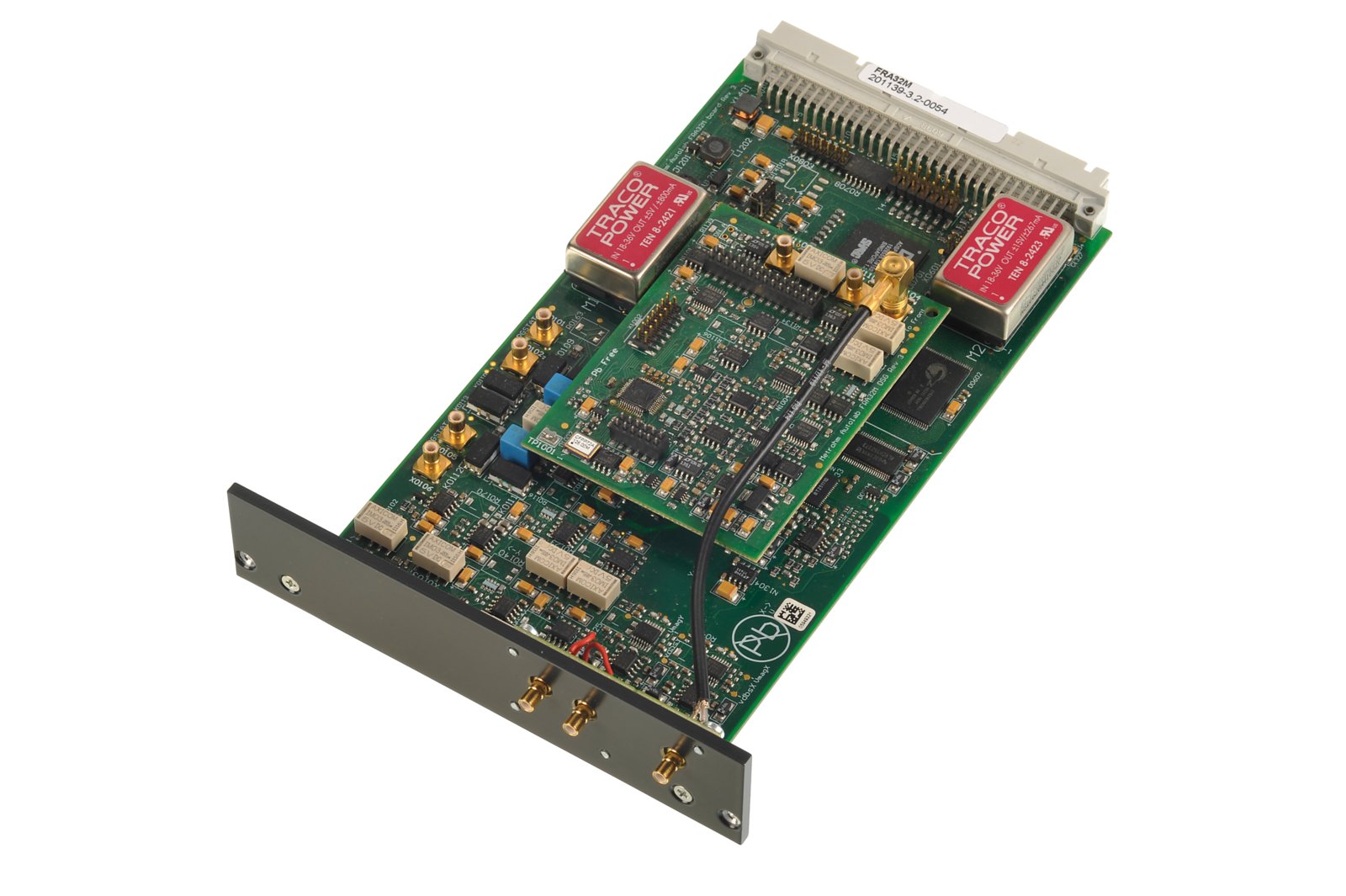

Choose the modules you need

https://s7e5a.scene7.com/is/image/metrohm/FRA32M?ts=1705569217427&dpr=off

With a Multichannel Line instrument, you can combine a total of twelve potentiostat/galvanostat modules (M101 or M204) and extension modules in one system. You can configure a customized system that is perfectly suited for your specific research requirements. Each of these up to twelve modules is capable of performing measurements in an individual measuring cell.

Create the measurable range you need; + 20 V compliance (+ 10 V for M101), max. current + 400 mA (+ 100 mA for M101)
Add additional techniques and capabilities, even after installation
Up to 6 modules to choose from

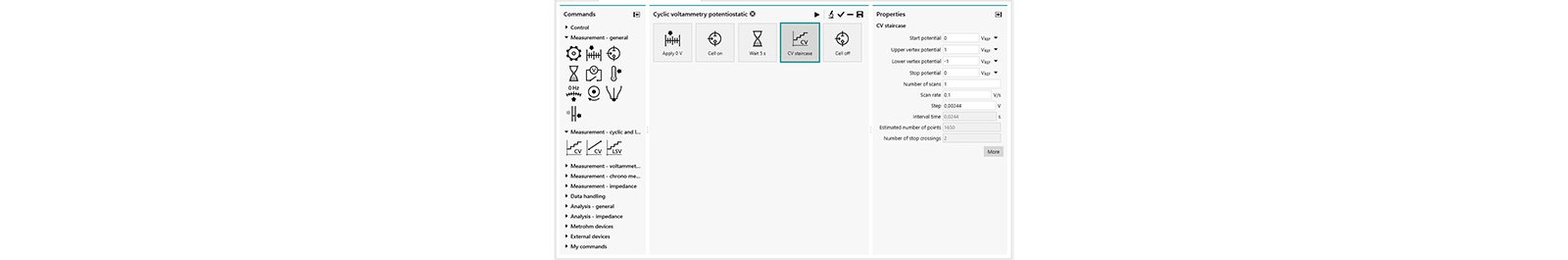

NOVA 2 controls all functionality

https://s7e5a.scene7.com/is/image/metrohm/NOVA-2_0-Procedure-editor?ts=1705569217435&dpr=off

The Multichannel Line is controlled via the NOVA 2 software, featuring:

Customizable procedures with easy drag and drop
One interface and integrated control for external devices
Comprehensive data analysis, with publication ready graphs
SDK: control with LabVIEW or .NET customized applications

Systems

Multi Autolab/M101

AUTM101.S

The Multi Autolab/M101 is a multi channel potentiostat/galvanostat based on the compact Autolab PGSTAT101. It consist of a Multi Autolab Cabinet which can be fitted with up to 12 M101 modules. Each M101 is a completely independent potentiostat/galvanostat, allowing you to perform different measurements on each channel at the same time.The Multi Autolab can be controlled from up to three different computers simultaneously, allowing to share the available channels among different users.The Multi Autolab instruments can be complemented by a selection of optional modules. Each M101 module can be coupled to one optional module in the instrument. The maximum number of optional modules is 6. Optional modules or additional M101 modules can be installed at any time.

Multi Autolab/M204

AUTM204.S

The Multi Autolab is a multi channel potentiostat/galvanostat based on the compact Autolab PGSTAT204. It consist of a Multi Autolab Cabinet which can be fitted with up to 12 M204 modules. Each M204 is a completely independent potentiostat/galvanostat, allowing you to perform different measurements on each channel at the same time.The Multi Autolab can be controlled from up to three different computers simultaneously, allowing to share the available channels among different users.The Multi Autolab instruments can be complemented by a selection of optional modules. Each M204 module can be coupled to one optional module in the instrument. The maximum number of optional modules is 6. Optional modules or additional M204 modules can be installed at any time.

1 / 2

View all systems (2)

Which potentiostat or galvanostat fits your requirements?

Talk to your Metrohm representative and learn about the best solution for your needs!

Contact

Options and upgrades

Modules
Accessories
Electrodes
Cells
Software

Optional modules for expanding the scope

Electrochemical impedance spectroscopy (EIS), dual mode bipotentiostat module, current booster (Booster10A), pH/pX measurement (pX1000), electrochemical quartz crystal microbalance (EQCM), and automation with multiplexing (MUX) – these are the additional capabilities that can be added to the Autolab Multichannel M204 and M101 instruments through a dedicated module.

Accessories for any applications

Metrohm Autolab offers a range of electrochemistry accessories including rotating electrodes. Our accessories enable you to implement additional measurement techniques and capabilities and conduct research in any applications

Learn more about Metrohm Autolab accessories

Electrodes for electrochemistry

No matter what your application, Metrohm Electrochemistry has the electrode you need. Our electrodes are available in a variety of materials (e.g., glassy carbon, platinum, gold, etc.) and formats (e.g., reference, counter, screen-printed, etc.).

Go to Electrode Finder
