Ag/AgCl reference electrode (length 12.5 cm)
6.0729.100
2 Reviews on SelectScience
- Feature overview
- Tech specs
Silver/silver chloride reference electrode with Double-Junction System and separate shielding, installation length 10 cm.
This reference electrode is well-suited for:
- Nonaqueous samples
- Differential potentiometry
The standard ground-joint 14/15 enables easy assembly, and the flexible ground-joint diaphragm, which is insensitive to contamination, can be replaced at any time. The reference electrolyte and the bridge electrolyte can be selected freely according to use, and are easy to replace. The sensor is supplied without electrolyte filling.
Equip your Ag/AgCl reference electrode (length 12.5 cm)![download]()
Scope of delivery and opt. parts (PDF)
Scope of delivery and opt. parts (PDF)- Optional parts

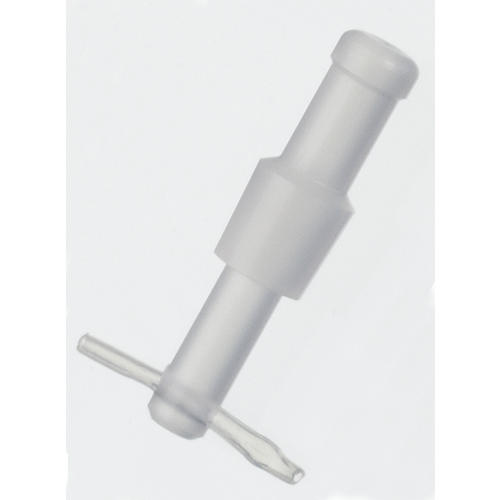

Diaphragm for reference electrode
6.1243.030
Spare ground-joint diaphragm for 6.0726.1XX and 6.0729.1XX reference electrodes
Electrode cable / 1 m / F
6.2104.020
For connecting electrodes with Metrohm plug-in head G to Metrohm instruments (socket F).

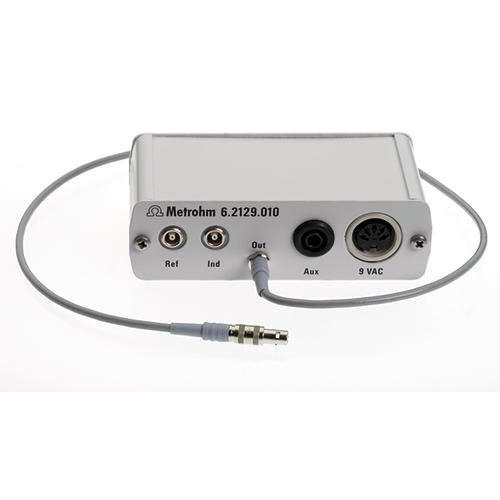

Differential amplifier, plug F
6.2129.010
Differential amplifier with plug F, for Titrandos (power supply unit must be ordered separately: 6.2117.000 power unit EU 230 V / 9 V AC)Also available as a complete set: 6.5104.030 differential amplifier / plug F / 230 V EU
Electrolyte 3 mol/L KCl (250 mL)
6.2308.020
Electrolyte solution c(KCl) = 3 mol/L, (for Ag/AgCl reference systems)
Show more
