797 VA Computrace for CVS
2.797.0030
- Feature overview
- Tech specs
The 797 VA Computrace is a modern voltammetric measuring stand that is connected to a PC via a USB port. The computer software provided controls the measurement, records the measured data and evaluates it. Operation is most straightforward due to the well-laid-out structure of the program. The integrated potentiostat with galvanostat guarantees the highest sensitivity with reduced noise.
Voltammetry system for the determination of organic additives in electroplating baths with "Cyclic Voltammetric Stripping" (CVS). Complete accessories with VA Computrace software and all electrodes for a complete measurement system: Rotating platinum disk electrode (RDE), Ag/AgCl reference electrode and Pt auxiliary electrode.
This product has been discontinued, but is still supported.
Go to replacement product
Equip your 797 VA Computrace for CVS
Scope of delivery and opt. parts (PDF)



- Included parts
- Optional parts

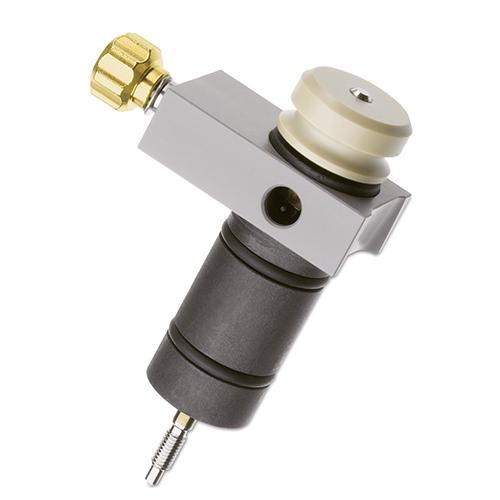

Driving axle for rotating disk electrode (RDE)
6.1204.210
Driving axle for rotating disk electrode (RDE) with titanium axle for VA measuring stands, M3 thread.
2 mm platinum electrode tip for CVS
6.1204.610
Metal electrode tip made of platinum (Pt), diameter of electrode disk 2 mm ±0.05 mm, polished surface, shaft made of glass, M3 thread connection. Concentricity error: < 0.3 mm. Temperature range: 0 - 50 °C.

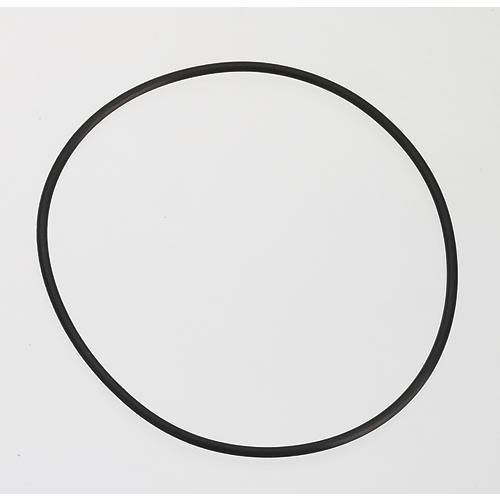

Driving belt
6.1244.020
For Rotating Disk Electrodes and stirrer in VA Stands (3 pieces).
Electrolyte vessel made of plastic
6.1245.010
Electrolyte vessel made of plastic with ceramic diaphragm for double junction reference electrode.
Show more
